BY TYPE:
RECEIVER (RX) - PARTS IN USE ON RECEIVERS
GUNN OSCILLATORS
MULTIPLIERS
HARMONIC MIXERS
COUPLERS, MISC.
| RECEIVER (RX) | PARTS | DATA SHEET |
| 230 GHz RX (185GHz to 305GHz) | GUNN OSCILLATOR, H123 | YES |
| HUGHES ISOLATOR, 45116H-1000, SN: 1315 | NONE | |
| HUGHES COUPLER, 45326H-1320, SN: 065 | NONE | |
| PACIFIC MM HAR. MXR, WM115, SN: 185 | NONE | |
| ADJUSTABLE ATTENUATOR | NONE | |
| MILLITECH MULTIPLIER, FTT-03-1, SN: 155 (on Frank's Rx as of
Jan 2007.) |
YES | |
| 345 GHz RX (295GHz to 440GHz) | GUNN OSCILLATOR, H121 | YES |
| HUGHES ISOLATOR, 45116H-1000, SN: 1158 | NONE | |
| HUGHES COUPLER, 45326H-1320, SN: 066 | NONE | |
| PACIFIC MM HAR MXR, WM115, SN:184, ON STRAIGHT THRU | NONE | |
| PACIFIC MM HAR MXR, WM115, SN:186, ON COUPLED PORT | NONE | |
| ADJUSTABLE ATTENUATOR | NONE | |
| MILLITECH MULTIPLIER, MU4-02-T1, SN: 30 | YES | |
| 492 GHz RX (440GHz to 530GHz) | GUNN OSCILLATOR, H115 | YES |
| HUGHES ISOLATOR, 45116H-1000, SN: 1159 | NONE | |
| HUGHES COUPLER, 45326H-1320, SN: 032 | NONE | |
| PACIFIC MM HAR MXR, EM(?), SN:003 | NONE | |
| CUSTOM MICROWAVE ADJ. ATTENUATOR | NONE | |
| MULTIPLIER, 4 PORT ADJ., SN: 097 (failed in 2006) |
YES | |
| 650 GHz RX (580GHz to 720GHz) | GUNN OSCILLATOR, H181 | YES |
| HUGHES ISOLATOR | NONE | |
| TRG ATTENUATOR (?) | NONE | |
| HUGHES COUPLER, 45326H-1310, SN: 243 | NONE | |
| PACIFIC MM HAR. MXR, FM, SN: 006 | NONE | |
| CUSTOM MICROWAVE ADJ. ATTENUATOR | NONE | |
| MULTIPLIER, 4 PORT ADJUSTABLE | YES | |
| 850 GHz RX (780GHz to 908GHz) | GUNN OSCILLATOR, H186 | YES |
| MULTIPLIER | YES | |
| PACIFIC MM HAR. MXR, FM, SN: |
NONE |
| GUNN OSCILLATORS | LOCATION | DATA SHEET |
| ZAX MILLIMETER WAVE CORP. ZMT-8/20/115/4, SN: 210 |
"GUNN 210", IN LAB DRAWER | YES,
SEE 1989
LIST |
| ZAX MILLIMETER WAVE CORP. ZMT-8/30/114.6/2, SN: 211 |
"GUNN 211", LOCATION UNKNOWN | YES,
SEE 1989
LIST |
| ZAX MILLIMETER WAVE CORP. ZMT-10/50/82/6, SN: 215 |
"GUNN 215", IN LAB DRAWER | NONE, SEE 1989 LIST |
| ZAX MILLIMETER WAVE CORP. ZMT-8/40/87/6, SN: 216 |
"GUNN 216", LOCATION UNKNOWN | YES,
SEE 1989
LIST |
| ZAX MILLIMETER WAVE CORP. ZMT-8/40/91/12, SN: 236 |
"GUNN 236", IN LAB DRAWER | YES,
SEE 1989
LIST |
| ZAX MILLIMETER WAVE CORP. ZMT-8/20/112/4, SN: 247 |
"GUNN 247", IN LAB DRAWER | NONE, SEE 1989 LIST |
| ZAX MILLIMETER WAVE CORP. ZMTT8/25/101.5/11, SN: 251 |
"GUNN 251", LOCATION UNKNOWN | NONE, SEE 1989 LIST |
| ZAX MILLIMETER WAVE CORP. ZMTT8/25/101.5/10, SN: 254 |
"GUNN 254", LOCATION UNKNOWN | YES |
| ZAX MILLIMETER WAVE CORP. ZMT 8/20/108/4, SN: 255 |
"GUNN 255", IN LAB DRAWER | YES |
| "GUNN H115" | ON Frank's rx (as of July 2006) |
YES |
| "GUNN H121" | ON 345 RX | YES |
| "GUNN H123" | ON 230 RX | YES |
| "GUNN H181" | ON 650 RX | YES |
| RPG L.O., ZIMMERMAN GUNN [842 - 908 GHz] SN:98153 |
FOR 850 RX | YES |
| RPG L.O. [780 - 846 GHz] SN:(19.01.2000) |
FOR 850 RX (LOWER FREQ RANGE) |
YES |
| "GUNN H186" | ON 850 RX (7/5/00) | YES |
| RPG GUNN OSCILLATOR 100-110 GHz | IN LAB DRAWER, NO LABEL (was sent to RPG in Oct 2001 and is
lost.) |
YES (USED WITH RPG FREQUENCY DOUBLERS 200-220 & 400-440 GHz) |
| H124 [348 - 452 GHz] | (FOR 345 RX, HIGHER FREQ RANGE) (This Gunn belonged to John
Carlstrom and is not at the CSO.) |
YES |
| H122 [618 - 702 GHz] | (FOR 650 RX, NARROW LOW RANGE) Said to be in Karpov's
lab in Pasadena. Last seen at the CSO in 1997. |
YES |
| H298 [145 - 150 GHz] |
IN AOS LAB DRAWER |
YES |
| H420 [68 - 96 GHz] |
usually at summit in drawer. |
YES |
| H473 [63-107 GHz,
WR-11 waveguide] |
usually found on barney (as
of July 2006) |
YES |
| H474 [62.0-96.0 GHz WR-11
waveguide] |
Hilo (with M.L. as of Jan 2007) |
YES |
| MULTIPLIERS | LOCATION | DATA SHEET |
| RPG FREQUENCY DOUBLER, 180-220GHz | NO LABEL, IN LAB DRAWER | YES |
| MILLITECH, TRIPLER, MU3-03-T3-S, 280-325GHz, SN: 105 |
IN LAB DRAWER | YES (BUT OLD, REPAIRED 2/5/04) |
| MILLITECH MU4-02-T1, SN: 30 |
ON 345 RX | YES |
| MILLITECH FTT-03-1, SN: 115 |
Traditionally on the sidecab 230 RX. As of Feb 2007 it
is being used on Frank's rx. |
YES |
| RPG FREQUENCY DOUBLER 400-440GHz w/ RPG FREQUENCY DOUBLER 200-220GHz |
"MULTIPLIER 492 2X3", IN LAB DRAWER | YES (USED WITH RPG GUNN OSCILLATOR 100-110 GHz) |
| CUSTOM MICROWAVE ("ATTENUATOR" PENNED ON) | "MULTIPLIER 101", LOCATION UNKNOWN | NONE |
| CUSTOM MICROWAVE, SN: 102 | "MULTIPLIER 102", IN LAB DRAWER | NONE |
| CUSTOM MICROWAVE, WR4 | "MULTIPLIER 103", IN LAB DRAWER | NONE |
| CALTECH, SN: 104 | "MULTIPLIER 104", IN LAB DRAWER | NONE |
| "MULTIPLIER 105" | "MULTIPLIER 105", LOCATION UNKNOWN | NONE |
| 4 PORT ADJUSTABLE, SN: 097 | ON 492 RX (Failed in 2006.) |
YES(?) |
| 4 PORT ADJUSTABLE | ON 650 RX | YES |
| RPG L.O., ZIMMERMAN 842-908GHz, SN: 98153 |
ON 850 RX (1/2000) | YES |
| RPG L.O., 780-846GHz, SN:(19.01.2000) | FOR 850 RX (LOWER FREQ RANGE) IN LAB DRAWER |
YES |
| (OLD 850 RX MULTIPLIER) | LOCATION UNKNOWN |
YES |
| X4 FOR 345 RX (HIGH FREQ. RANGE) | YES(?) | |
| MILLITECH CDA-02-990548, SN: 057 |
X4 FOR 345 RX (rcv'd 1/2000) IN LAB DRAWER 1/26/00 | YES |
| VDI X5 for 490
GHz band s/n VDI-WR1.9X5-S009 |
in AOS lab drawer. |
YES |
| VDI X3 for 230 GHz band VDI-WF3.4X3-S205 (210-310GHz) |
As Jan 2007on sidecab 230GHz
facility receiver. |
YES |
| VDI X3 for 230 GHz band VDI-WR4.3X3-S019 (170 - 270 GHz) |
As of Jan 2007 on Frank's
rx |
YES |
| HARMONIC MIXERS | LOCATION | DATA SHEET |
| PACIFIC MILLIMETER EM 60 GHz - 90 GHz, WR12 |
||
| PACIFIC MILLIMETER, EM, SN: 003 | ON 492 RX | NONE |
| PACIFIC MILLIMETER, EM, SN: 020 | IN RUBBERMAID CONTAINER | NONE |

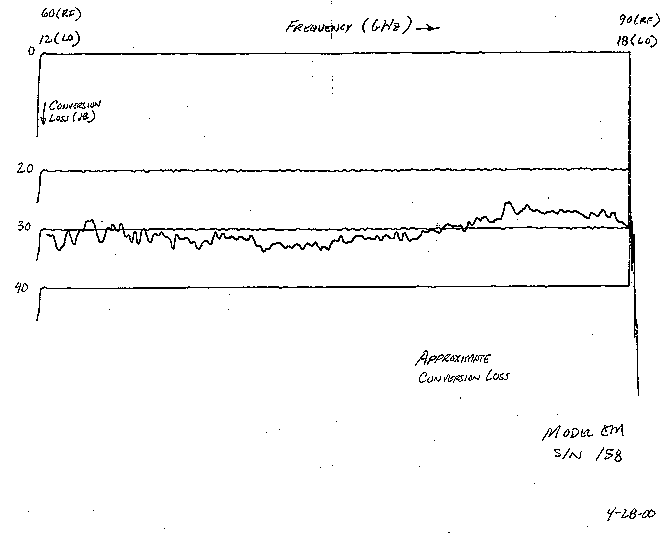

| PACIFIC MILLIMETER, EM, SN: 158 | CSO SUMMIT | YES |

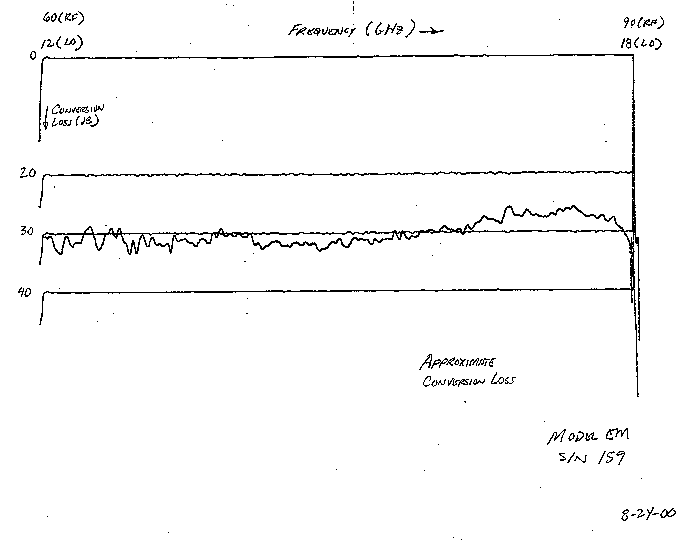

| PACIFIC MILLIMETER, EM, SN: 159 | CSO SUMMIT | YES |
| PACIFIC MILLIMETER WM115 75 GHz - 110 GHz, WR-10 |
||
| PACIFIC MILLIMETER, WM115, SN: 184 | ON 345 RX (ON STRAIGHT THRU OF COUPLER) | NONE |
| PACIFIC MILLIMETER, WM115, SN: 185 | ON 230 RX | NONE |
| PACIFIC MILLIMETER, WM115, SN: 186 | ON 345 RX (ON COUPLED PORT) | NONE |

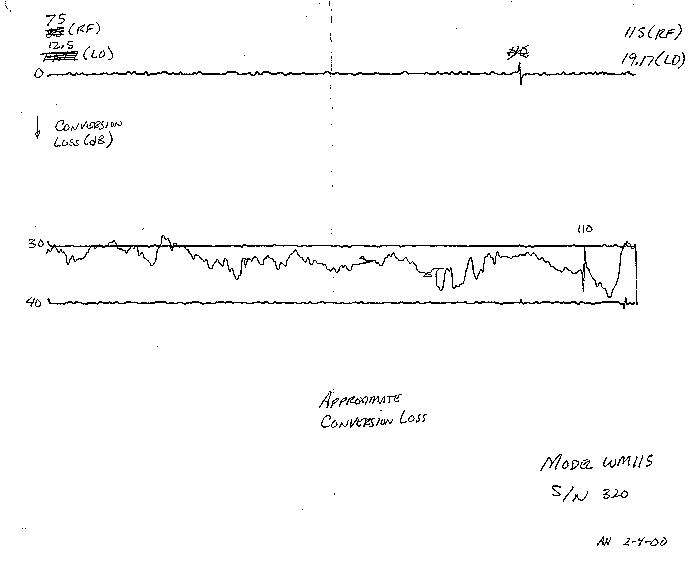

| PACIFIC MILLIMETER, WM115, SN: 320 | CSO BASE OFFICE | YES |
| PACIFIC MILLIMETER FM 90 GHz - 140 GHz, WR-8 |
||
| PACIFIC MILLIMETER, FM, SN: 006 | ON 650 RX | NONE |
| PACIFIC MILLIMETER, FM, SN: 025 | IN RUBBERMAID CONTAINER | NONE |
| PACIFIC MILLIMETER, FM, SN: 097 | IN RUBBERMAID CONTAINER |
NONE |

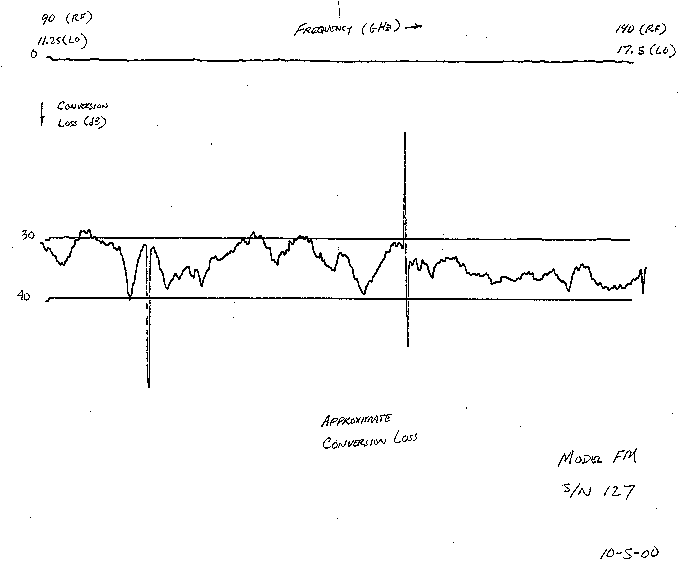

| PACIFIC MILLIMETER, FM, SN: 127 | ON 850 RX (W/ HIGH FREQ SET UP) | YES |

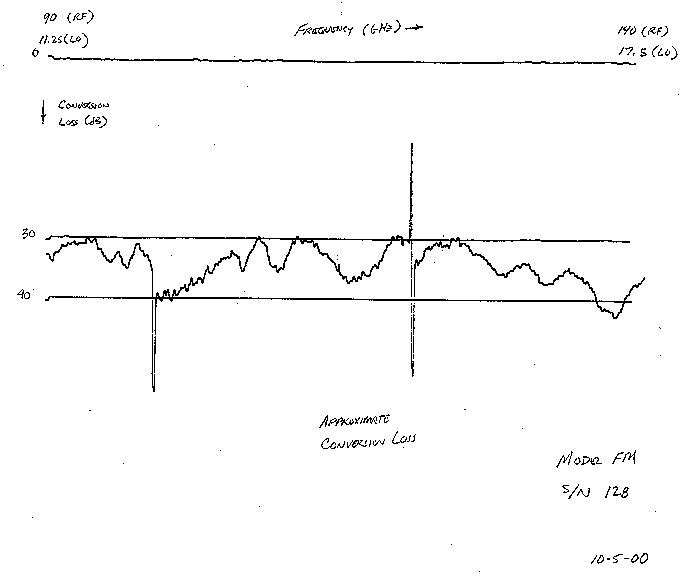

| PACIFIC MILLIMETER, FM, SN: 128 | CSO SUMMIT | YES |
| PACIFIC MILLIMETER, DM 110 GHz - 170 GHz, WR-6 |
||

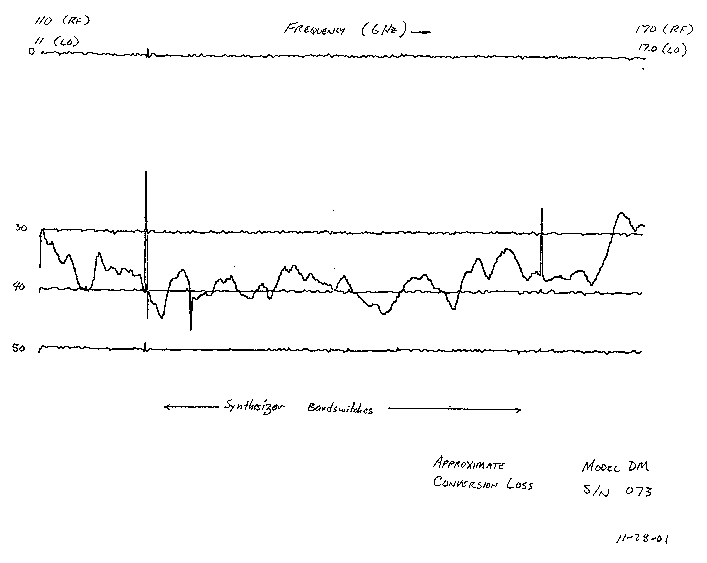

| PACIFIC MILLIMETER, DM, SN: 073 | ON 850 RX (LOW FREQ SET UP) | YES |

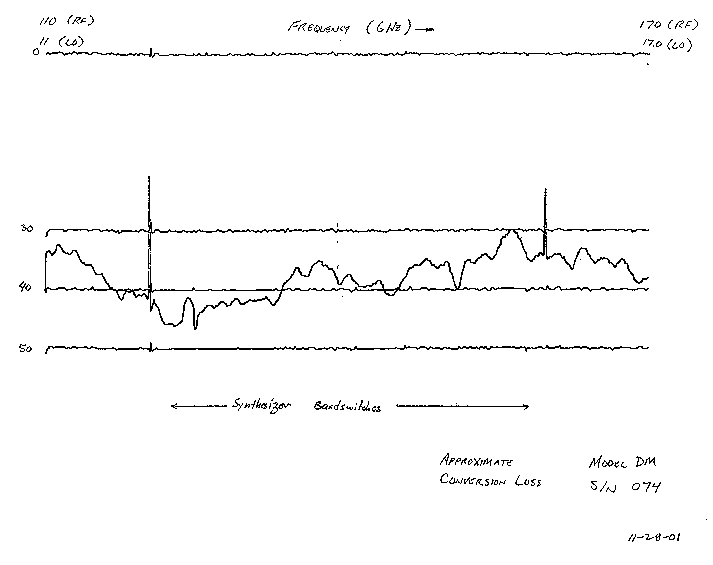

| PACIFIC MILLIMETER, DM, SN: 074 | IN RUBBERMAID CONTAINER | YES |
| |
||
| PACIFIC MILLIMETER, NO LABEL, SN: 100 | IN RUBBERMAID CONTAINER | NONE |
BELOW DOES NOT INCLUDE WHAT'S ON THE RECEIVERS. THESE ARE JUST THE SPARE MISC. COMPONENTS.
| COUPLERS, MISC. | LOCATION | DATA SHEET |
| RPG CROSSGUIDE COUPLER, WR-8 | IN LAB DRAWER, NO LABEL | NONE |
| HUGHES, 45326H-1310, SN: 230 (W10dB8) | IN LAB DRAWER, NO LABEL | YES |
| HUGHES, 45326H-1320, SN: 088 | IN LAB DRAWER |
YES |
| ALPHA INDUSTRIES 10dB COUPLER, 561F-10/14, SN: 264 |
IN LAB DRAWER |
NONE |
| HUGHES ISOLATOR, 45116H-1000, SN: 1167 | IN LAB DRAWER |
YES |
| SUBMILLIMETER FEED HORN (?) | IN LAB DRAWER | NONE |
| ALPHA INDUSTRIES, TRG, F520, SN: 177, ATTENUATOR (?) | IN LAB DRAWER |
NONE |
